Module Types




Trilobite provides a palette of audio signal modules which may be connected together using the Patch Visual Editor. This section enumerates and describes each module type in its own page containing the information and tables shown as a template on this page.

Topics on this page include:

Module Description
Static Parameters
Input Ports
Output Ports
Module Type List

Module Description

Each Module type is described in varying detail, with an overview of how signals are generated, manipulated, or consumed. Where appropriate, further technical or historical links are provided.

Static Parameters

Static parameters are the Module attributes which may be manipulated in the module's Popup Parameter Dialog. These values may only be changed manually in the Patch Visual Editor, or auto-generated when Patches are evolved using the Population Editor. They will remain fixed during general usage.

Static parameters for each Module type are tabulated as follows:

#

Title

Type

Description

The static parameter index, starting with 0.

The label for this static parameter.

The parameter variable type. Possible types are:

  • discrete integer values (text edit/slider)

  • floating-point (“Real”) values (text edit/slider)

  • toggle (“Boolean”) values (buttons)

  • Multiple choice (combo box)

  • Breakpoints (breakpoint visual editor)

  • Sequence value array
    (pro version only)

A brief description of the purpose of this static parameter. Where applicable, the range of possible values is expressed as:

Range[from, to]

and the slider behavior is expressed as linear or logarithmic.

Input Ports

These are the ports lining the right side of each module, and are the conduit by which the module receives signals from other modules (see the Patch Canvas page for more info). For most module types, each port signal has a unique purpose, but some Module types allow additional Input Ports of duplicate purpose to be added manually using the Module Popup Menu. Every module Input Port has an input signal scalar value and an optional mapped parameter as described in the Patch Basics page. Individual module types may or may not apply this these scalars to each input signal.

Input Ports for each module type are tabulated as follows:

#

Title

Description

Input Scalar Used

The Input Port index, starting from the top with index 0.

For module types supporting manual addition of input nodes, this will be expressed as:

offset + N, etc.

The title of this port, as seen when holding the mouse over a port as described when making port connections.

A brief description of how this input signal is used by the module.

Will contain “YES” or “NO”, depending on whether this Module type applies the scalar values internally

Output Ports

The number of module Output Ports is always fixed, although each of these may or may not generate signal based on internal module state.

Output Ports for each module type are tabulated as follows:

#

Title

Description

The Output Port index, starting from the top with index 0.

The title of this port, as seen when hovering the mouse cursor over a port when making port connections.

A brief description of this output signal.

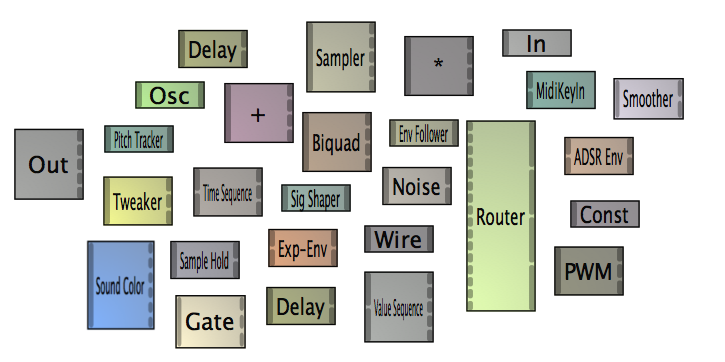

Module Type List

Modules types include:

Output
Input
Oscillator
Constant
Sum
Product
Biquad Filter
Midi Input
Delay
Signal Shaper
Envelope Follower
Exponential Pulse
Pitch Tracker
Sampler
ADSR Envelope
Wire
Noise Source
Tweaker (pro version only)
Sample Hold (pro version only)
Value Sequence (pro version only)
Time Sequence (pro version only)
Pulse Width Modulator (pro version only)
Router (pro version only)
Sound Color (pro version only)
Gate (pro version only)
Smoother
