Gate Module




This module acts as a counter-balanced mixer for two input signals with the mix balance controlled by a third signal. If only one input signal is routed into the module, it acts as a basic gate modulator.

For a key to understanding the tables on this page, see the Module Types page.



The Gate Module is available in Pro Version only.

Adding Input Ports

Adding input ports is not enabled for this module.

Static Parameters

#

Title

Type

Description

0

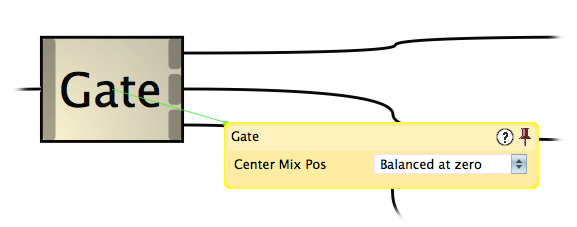

Center Mix Pos

Multiple Choice

Has the options:

  • Balanced at half, which causes the gate to proportionately mix A/B signals from input ports using a mix range of [0, 1] with 0.5 being the position at which input port scaling is equal..

  • Balanced at zero, which causes the gate to proportionately mix A/B signals from input ports using a mix range of [-1, 1] with 0.0 being the position at which input port scaling is equal..

Input Ports

#

Title

Description

Input Scalar Used

Parameter Scalar Used

0

Signal A

Input signal source.

NO

NO

1

Signal B

Input signal source.

NO

NO

2

A/B Mix Balance

Control signal which sets the mix ratio of Input Source B to Input Source A.

YES

YES

Output Ports

#

Title

Description

0

Gate-mixed Signal

Either a synthesized vocal sound or filtered version of Glottal Source signal.
