Oscillator Module




The oscillator module creates an oscillating waveform of the indicated function type at the frequency specified by its input Control Signal. Available function types are sinusoidal, square, triangle, and sawtooth.

For a key to understanding the tables on this page, see the Module Types page.

Adding Input Ports

Adding input ports is not enabled for this module.

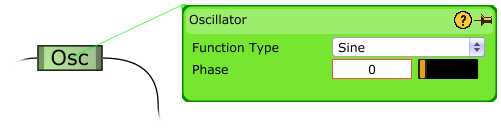

Static Parameters

#

Title

Type

Description

0

Function Type

Choice

Has the options

  • Sine

  • Square

  • Triangle

  • Sawtooth

1

Phase

Floating-point

indicates the initial phase of the waveform as a ratio value.

Range: [0, 1], LINEAR

Input Ports

#

Title

Description

Input Scalar Used

Parameter Scalar Used

0

Frequency Signal

The input signal to this port controls the module oscillation frequency in cycles per second (Hz)

YES

YES

Output Ports

#

Title

Description

0

Output Signal

The oscillating waveform.

Range: [-1, 1]
