Trilobite 1.2
User Guide


© Darwin Arts L.L.C., 2015

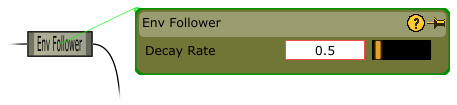

Envelope Follower Module




The Envelope Follower Module detects peak values in the Signal routed to its single Input Port and generates an envelope-following positive Signal which exponentially decays at a configurable rate.

For a key to understanding the tables on this page, see the Module Types page.

Adding Input Ports

Adding input ports is not enabled for this module.

Static Parameters

#

Title

Type

Description

0

Decay Rate

Floating-point

Indicates how quickly the follower envelope, once triggered, decays towards zero. Larger values indicate a more rapid decay.

Range: [0.005, 10.0], LOG

Input Ports

#

Title

Description

Input Scalar Used

Parameter Scalar Used

0

Input Signal

The input signal whose peak absolute values will be detected by the Envelope Follower

NO

NO

Output Ports

#

Title

Description

0

Output Follower Signal

This output signal is a positive envelope whose peaks duplicate the peak values of the Input Signal, followed by smooth exponential decay
