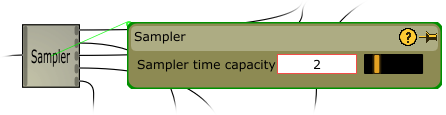

Sampler Module




The Sampler Module implements a sample and playback buffer with offset, sample duration and pitch control. This module, when triggered by its record trigger signal rising above a threshold, will record its input signal into a buffer. Recording will cease when its record trigger signal falls below the threshold or buffer space is exhausted, whichever comes first. When recording ceases, the playback mode immediately begins. In playback mode, the signal sampled in record mode loops with offset, duration, and rate modifications. The loop offset into the sampled sound is indicated by an input signal. The duration of the loop, as a percentage of the remainder of the sampled sound, is indicated by an input signal. The resampled playback rate of the sampled sound is indicated by yet another input signal.

For a key to understanding the tables on this page, see the Module Types page.

Adding Input Ports

Adding input ports is not enabled for this module.

Static Parameters

#

Title

Type

Description

0

Sampler Time Capacity

Floating-point

Indicates the recording capacity of the sampler, in seconds.

Range: [0.25, 10.0], LINEAR

Input Ports

#

Title

Description

Input Scalar Used

Parameter Scalar Used

0

Input Signal

Signal to be Sampled

NO

NO

1

Input Record Trigger

If this signal value rises above 0.5, Record mode is activated. When it falls below 0.25, Playback mode is activated.

NO

YES

2

Input Loop Start Offset

This signal value indicates the percentage of offset into the sampled sound at which the playback loop starts. If the value is 1.0, then playback is disabled.

NO

YES

3

Input Loop Duration

This signal value indicates the percentage of the remainder of the sampled sound after the indicated offset which will be played as loop. If the value is 0.0, then playback is disabled.

NO

YES

4

Input Playback Rate

This signal value maps to the range [0.05, 16.0] for resampled playback rates of the loop.

NO

YES

Output Ports

#

Title

Description

0

Output Signal

Looped and resampled version of the input signal.
